CABLE RAILING SYSTEMS: SWAGE LAG END
Price: $8.00
Description
The SWAGE LAG END fitting is the terminal end of the FineLine™ LAG ASSEMBLY. This Assembly requires: 1 FineLine™ LAG TURNBUCKLE, CABLE, and 1 SWAGE LAG END. The number of cable runs is determined by post height. 3″ cable spacing is recommended.
Benefits / Technical Information:
- Material: 316 Stainless Steel.

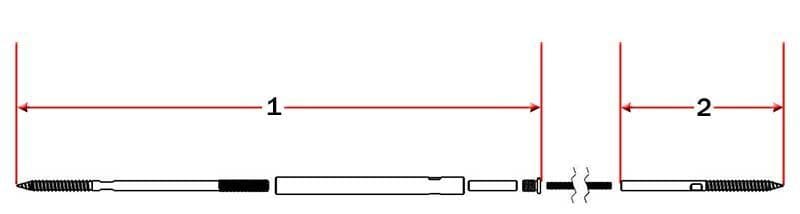

See number “2” in the above drawing to see how the SWAGE LAG END is used.
Note: Stainless Steel is highly resistant, but not impervious to the elements, and requires minimal maintenance for ideal results. We recommend applying Passivator to all exposed stainless steel components at the time of installation. In addition, apply Rust Rescue if within 10 miles of a marine environment to further protect the stainless steel. Learn more about these products and general stainless steel care on our Cleaning & Maintenance Page.
Need help? Call 1-888-686-7245(RAIL), or email [email protected]. You can also email or fax us an ESTIMATE REQUEST FORM for a free estimate. We are happy to help and will respond within 24 hours. For online assistance and further information about our systems, take a look at our HELP PAGES and VIDEOS.
Product # 732509 & 732516
Additional information
| Weight | 0.07 lbs |
|---|---|
| Size | For 1/8 in. cable, For 3/16 in. cable |
