Architects Corner

Deck railing specs, CAD files, BIM files, and other resources for construction industry professionals.

CableView™ Aluminum

Commercial Railing Ideas

BIM

Features & Benefits:

Lowest cost and shortest lead time
Lightweight and easy to work with
Reinforced design engineered for cable railing
Powder-coat offers protection and color options
Impervious to termites, ants, etc.
Sustainable Building Material
Rail Options: Rectangular, Shaped, Post-to-Post, and/or Wood

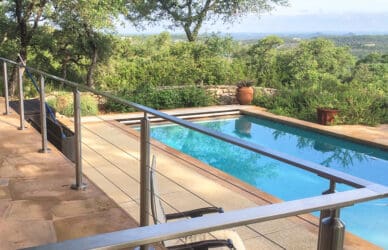

CableView™ Stainless Round

Commercial Railing Ideas

BIM

Features & Benefits:

Naturally strong, resilient, and corrosion-resistant
Round post shape is smooth and minimal
Low-maintenance Marine Grade 316 Stainless Steel
Beautiful brushed finish
Impervious to termites, ants, etc.
Fabricated specifically for your project
Rail Options: Round, Flat, and/or Wood

CableView™ Stainless Square

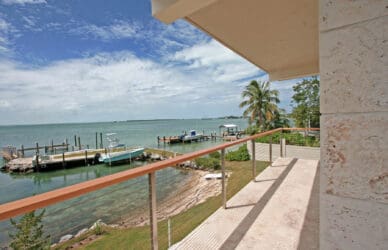

Cable Railing System Tropical Waterfront

Commercial Railing Ideas

BIM

Features & Benefits:

Naturally strong, resilient, and corrosion-resistant
Square post shape is striking and industrial
Low-maintenance Marine Grade 316 Stainless Steel
Beautiful brushed finish
Impervious to termites, ants, etc.
Fabricated specifically for your project
Rail Options: Round, Flat, and/or Wood

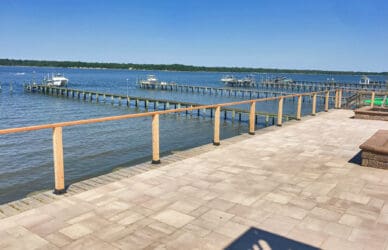

CableView™ Wood

Commercial Railing Ideas

BIM

Features & Benefits:

High-grade, premium quality, strong, easy-care species
Ipe Brazilian Walnut, Balau Mahogany, and Western Red Cedar
Naturally corrosion-free
Sustainable building material
Engineered for additional strength
Top Rail Options: Wood with or w/o Post-to-Post Support
Handrail Options: Aluminum Post-to-Post or Stainless Round

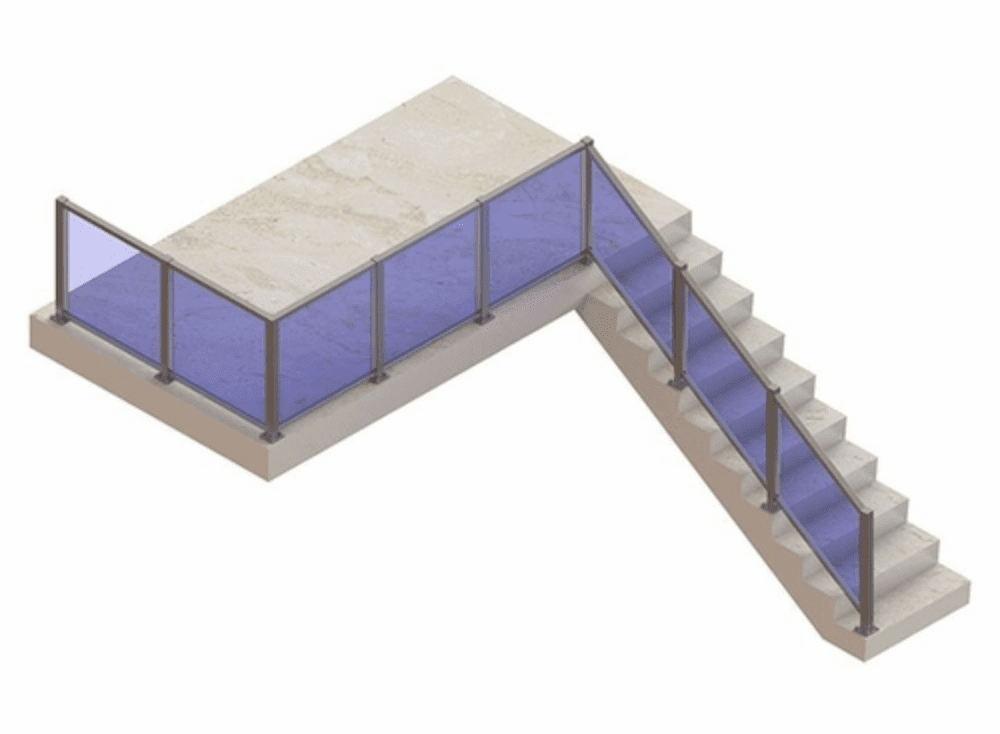

eGlass Element™

CAD

Thinnest rail option for minimal view obstruction
Segmented rail reduces shipping costs
Glass panels block wind without compromising visibility
Specially designed vinyl inserts eliminate wind rattle
Tempered glass panels are coated to be Carefree Clean™
Concealed fasteners for a clean aesthetic
Weather resistant and nearly maintenance free
Simple, time-saving, drop-in installation
Products in-stock and ready-to-ship, including glass panels
3 mounting options: deck, fascia, or fascia w/o brackets
Aluminum 6061-T6 posts and rails provide strength and durability
Available in 36" and 42" rail heights
AAMA 2605 powder coated for durability and available in four colors

eGlass Solid™

CAD

A wider top rail offers a usable surface
Continuous top rail provides a sleek, streamlined look
Optional 820 Series Top Rail, if a grab rail is needed
Glass panels block wind without compromising visibility
Specially designed vinyl inserts eliminate wind rattle
Tempered glass panels are coated to be Carefree Clean™
Concealed fasteners for a clean aesthetic
Weather resistant and nearly maintenance free
Simple, time-saving, drop-in installation
Products in-stock and ready-to-ship, including glass panels
3 mounting options: deck, fascia, or fascia w/o brackets
Aluminum 6061-T6 posts and rails provide strength and durability
Available in 36" and 42" rail heights
AAMA 2605 powder coated for durability and available in four colors

eGlass Vision™

CAD

A wider top rail offers a usable surface
Continuous top rail provides a sleek, streamlined look
Optional 820 Series Top Rail, if a grab rail is needed
Glass panels block wind without compromising visibility
Specially designed vinyl inserts eliminate wind rattle
Tempered glass panels are coated to be Carefree Clean™
Concealed fasteners for a clean aesthetic
Weather resistant and nearly maintenance free
Simple, time-saving, drop-in installation
Products in-stock and ready-to-ship, including glass panels
3 mounting options: deck, fascia, or fascia w/o brackets
Aluminum 6061-T6 posts and rails provide strength and durability
Available in 36" and 42" rail heights
AAMA 2605 powder coated for durability and available in four colors

eGlass Picket™

CAD

Three style options for top rails
Custom angle-cut glass panels not required
Easy slide & lock picket installation
Concealed fasteners for a clean aesthetic
Weather resistant and nearly maintenance free
Products in stock and ready to ship
3 mounting options: deck, fascia, or fascia w/o brackets
Aluminum 6061-T6 posts and rails provide strength and durability
Available in 36" and 42" rail heights
AAMA 2605 powder coated for durability and available in four colors
