Post Hex Bolt Attachment Hardware
INCLUDES:
Use Stainless Steel Grade 304 for most applications.
Use Stainless Steel Grade 316 for corrosive environments, such as those near the ocean and/or where deicer may be used.
Use Stainless Steel Grade 316 w/ Magni Dip for the most corrosive environments, such as beach and pool applications.
Description
For post mounting, hex bolts are generally preferred to the use of lags. Available in a variety of lengths to accommodate your chosen post dimensions and framing.

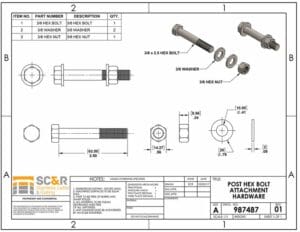

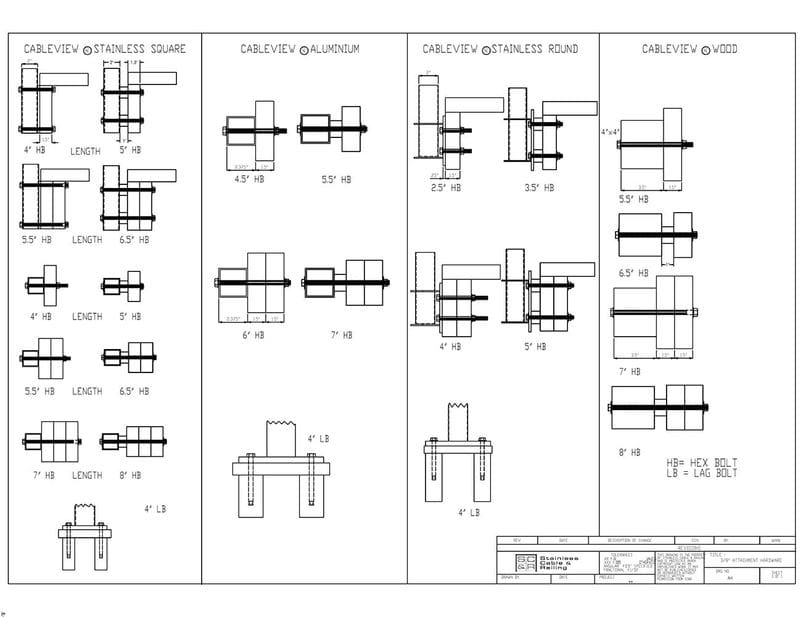

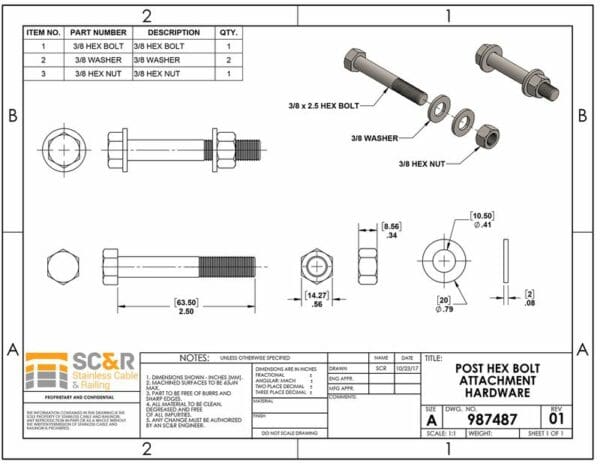

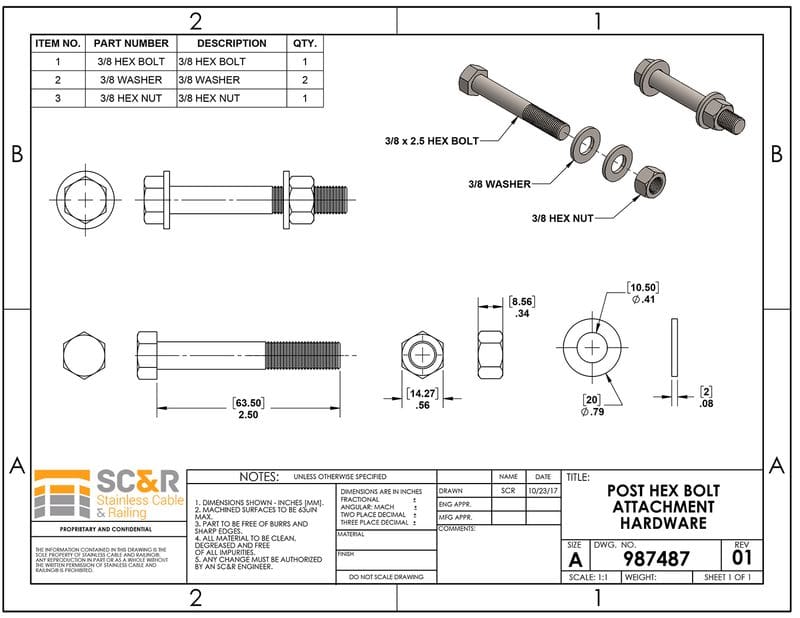

NOTE: To determine which length you should buy, REFER TO DRAWING SHOWN IN THE INSET IMAGE AND SPECIFICATIONS TAB.
Stainless Steel Grade 304: Used in most applications.
Stainless Steel Grade 316: Used in corrosive environments, such as near the ocean or where deicer may be used.
Stainless Steel Grade 316 w/ Magni Dip: Used in the most corrosive environments, such as beach and pool applications.

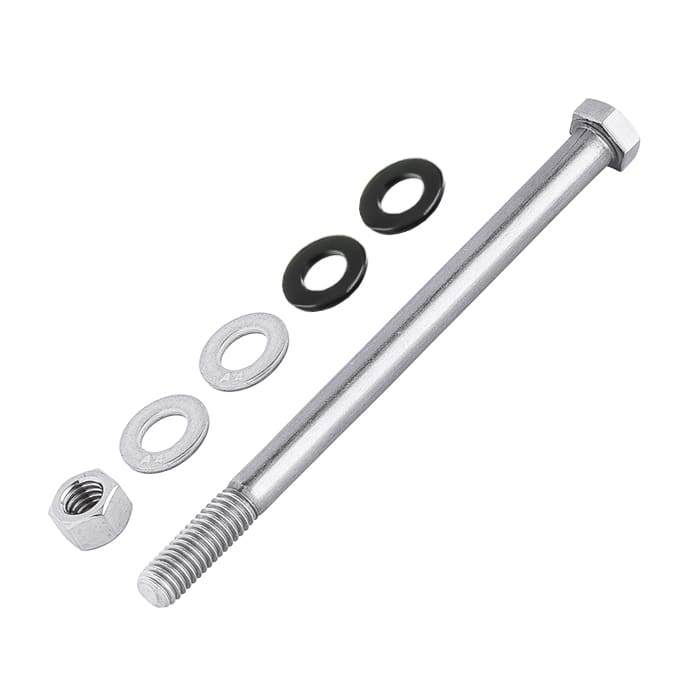

INCLUDES:
- 1ea 3/8in. HEX BOLT
- 1ea 3/8in. HEX NUT
- 2ea 3/8in. STAINLESS WASHERS
- 2ea 3/8in. NYLON WASHERS
- 2ea 3/8in. SLEEVE
Can be used in combination with the DTT2Z Deck Post Connector.
If you have questions about this or any other products, there are a number of ways to find help. Browse our FAQ and WORKSHEETS for online assistance, or contact us directly. Call 1-888-686-7245 (RAIL) or email [email protected].
Product # 724415, 987463, 987470, 987487, 987494, 987500, 987517, 987524, 987531, 987548, 987555, 987562, 987579, 012735, 012742, 012759, 012766, 012773, 012780, 012797, 012803, 012810, & 012827
Additional information
| Weight | 0.19 lbs |
|---|---|
| SS Grade & Length | 304 – 1in., 304 – 1.5in., 304 – 2in., 304 – 2.5in., 304 – 4in., 304 – 5in., 304 – 5.5in., 304 – 6in., 304 – 6.5in., 304 – 7in., 304 – 7.5in., 304 – 8in., 316 – 1in., 316 – 2in., 316 – 2.5in., 316 – 4in., 316 – 5in., 316 – 5.5in., 316 – 6in., 316 – 6.5in., 316 – 7in., 316 – 8in., 316 w/ Magni Dip – 7in. |
