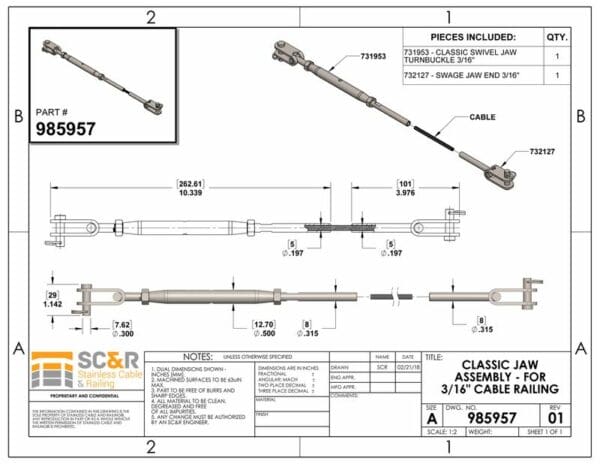

Classic Jaw Assembly – For 3/16″ Cable

Base Price $28.50 AvailabilityView our shipping policy

CHOOSE ONLY 3/16in CABLE WITH THIS ASSEMBLY.

INCLUDES:

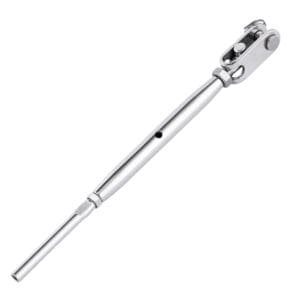

  • 1ea Classic Jaw Turnbuckle End
  • 1ea Swage Jaw Terminal End

    • CABLE SOLD SEPARATELY. SWAGING TOOL REQUIRED.

    SKU: 985957 Categories: ,

    Description

    The CLASSIC JAW ASSEMBLY is another classic design adopted from sailboat/marine technology for use in architectural handrails. It is used for straight or angled runs in metal posts and is attached to welded tabs or holes drilled directly into flat bar. Use either PROFESSIONAL SWAGING SERVICE or HAND SWAGING.

    NOTE: CHOOSE ONLY 3/16in CABLE WITH THIS ASSEMBLY.

      • 11 assemblies needed for each cable run 36″ high.
      • 13 assemblies needed for each cable run 42″ high.
      • TIP: It’s more economical to have longer cable runs that run continuously around corners so fewer fittings are needed.

    Parts and services needed to complete 1 assembly :

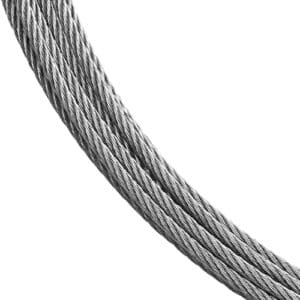

      1. 1×19 STAINLESS CABLE for straight runs and runs with slight bends or 7×7 STAINLESS CABLE for runs that have 90 degree corners.
      2. 1 CLASSIC JAW TURNBUCKLE + 1 SWAGE JAW END
      3. Note: For all Assembly lengths >50′ (70′ max) and/or runs from 0-70′ with more than 1 90 degree corner, it is recommended to omit the SWAGE JAW END and use 2 CLASSIC JAW TURNBUCKLES instead to allow cable tightening at both ends of your run.
      4. PROFESSIONAL SWAGING SERVICE or CABLE CUTTER + CABLE CRIMPER tools to hand swage your wire rope assemblies.

    Note: Stainless Steel is highly resistant, but not impervious to the elements, and requires minimal maintenance for ideal results. We recommend applying Passivator to all exposed stainless steel components at the time of installation. In addition, apply Rust Rescue if within 10 miles of a marine environment to further protect the stainless steel. Learn more about these products and general stainless steel care on our Cleaning & Maintenance Page.

    Need help designing your railing project or an estimate? Email drawings (non-technical OK) to us at:
    [email protected] and we will respond within 24 hours. See the WORKSHEETS tab for additional resources or just phone/fax us at 1-888-686-7245 (RAIL). We are happy to help!

    For more information and product inspiration, check out our videos on cable railing and our deck railing designs page.

    Product # 985957

    Additional information

    Weight 0.57 lbs
