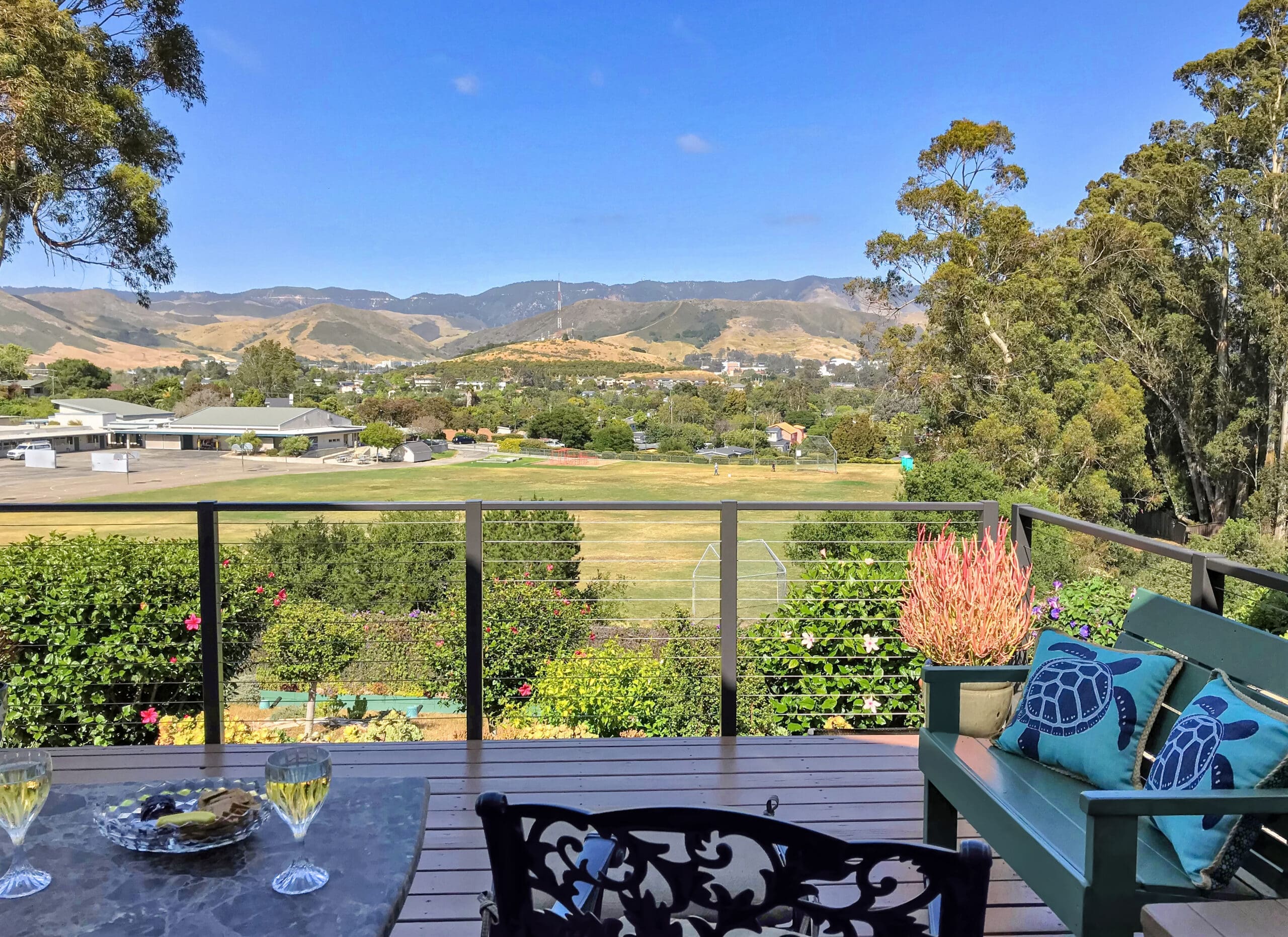

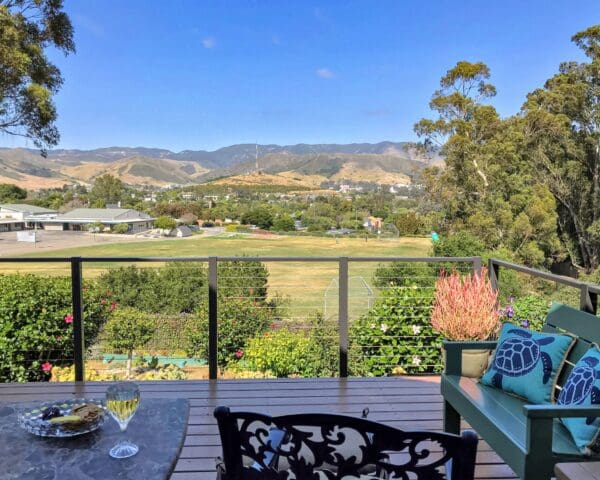

Customer project in SN Luis Obispo, CA, CA featuring Cable infill with Aluminum components.

Color & System Top Rail Mounting Style Infill
Bronze Aluminum P2P Fascia/Side Cable

Materials used in this project

Component list from sales order.

  • 1 ea x 1/8″ CABLE – 1×19 Twisted Marine Grade 316L Stainless Steel 616320730147296 ft 0.49 145.04 FIELD SWAGED THREADED TENSIONING END FOR 1/8″ CABLE – Marine Grade 316 Stainless Steel Anti-Seize INCLUDED Anti-Seize reminder label M6 Sacrificial grinding nut ___ Qty Shipped (UPC 61632073204222)
  • 1 ea x ACORN NUT FOR 1/8″ FITTINGS – M6x1.0 Marine Grade 316 Stainless Steel (UPC 61632073025322)
  • 1 ea x HEX NUT FOR 1/8″ FITTINGS – M6x1.0 Marine Grade 316 Stainless Steel (UPC 61632073028430)
  • 1 ea x WASHER FOR 1/8″ FITTINGS – M6.5 x 18 OD Marine Grade 316 Stainless Steel (UPC 61632073030722)
  • 1 ea x CABLE CRIMPER TO BE USED WITH EITHER 3/16″ or 1/8″ SWAGE DIES (UPC 6163207318781)
  • 1 ea x SWAGE DIE FOR CABLE CRIMPER TO BE USED WITH 1/8″ CABLE (UPC 6163207349161)
  • 1 ea x CABLE CUTTER SMALL SIZED TO BE USED WITH 1/8″ CABLE (UPC 6163207319081)
  • 1 ea x BRONZE FASCIA MOUNTED DRILLED TERMINAL POST (13HOLES 49″ CUT TO HEIGHT) ASSEMBLY FOR 36″ OR 42″ RAIL HEIGHT 1ea BRONZE 49″ DRILLED TERMINAL POST INCLUDED 1ea BRONZE POST CAP (TERMINAL) INCLUDED 2ea #8 X 3/4″ PHILLIPS PANHEAD BNZ 410 SS SCREW INCLUDED (UPC 6163207298512)
  • 1 ea x BRONZE FASCIA MOUNTED DRILLED INTERMEDIATE POST 13HOLES (49″ CUT TO HEIGHT) ASSEMBLY FOR 36″ OR 42″ RAIL HEIGHT 1ea BRONZE 49″ DRILLED INTERMEDIATE POST INCLUDED 1ea BRONZE POST CAP (INTERMEDIATE) INCLUDED 2ea #8 X 3/4″ PHILLIPS PANHEAD BNZ 410 SS SCREW INCLUDED (UPC 6163207297527)
  • 1 ea x 3/8″ DECORATIVE HINGED SCREW COVER 1ea 3/8″ Bronze Hinged Screw Cover (UPC 66218701203225)
  • 1 ea x 3/8″ x 7″ HEX BOLT / WASHER / NUT ASSEMBLY 1ea 3/8″ x 7″ Hex Bolt 2ea 3/8″ SS Washer 1ea 3/8″ Nut Material: 304 grade stainless (UPC 61645398756218)
  • 1 ea x TOUCH UP PAINT BOTTLE/ 5 FL. OZ./ BRONZE (UPC 6163207295541)
  • 1 ea x BRONZE POST-TO-POST RAIL ASSEMBLY 4FT LENGTH 4FT BRONZE POST-TO-POST RAIL INCLUDED 2ea MOUNTING BRACKET ASSEMBLY FOR POST-TO-POST 1ea MOUNTING BRACKET INCLUDED 2ea #8 X 3/4″ BRONZE PHILLIPS PANHEAD TEK 410 SS SCREW INCLUDED 2ea #10 x 3/4″ PHILLIPS PANHEAD TEK 410 SS SCREW INCLUDED (UPC 6163207339644)
  • 1 ea x BRONZE POST-TO-POST RAIL ASSEMBLY 5FT LENGTH 5FT BRONZE POST-TO-POST RAIL INCLUDED 2ea MOUNTING BRACKET ASSEMBLY FOR POST-TO-POST 1ea MOUNTING BRACKET INCLUDED 2ea #8 X 3/4″ BRONZE PHILLIPS PANHEAD TEK 410 SS SCREW INCLUDED 2ea #10 x 3/4″ PHILLIPS PANHEAD TEK 410 SS SCREW INCLUDED (UPC 6163207339883)
  • 1 ea x BRONZE POST CAP ASSEMBLY 1ea BRONZE POST CAP FOR TERMINAL POST INCLUDED 2ea #8 X 3/4″ PHILLIPS PANHEAD BNZ 410 SS SCREW INCLUDED (UPC 6164539837622)
  • 1 ea x BRONZE POST CAP ASSEMBLY 1ea BRONZE POST CAP FOR INTERMEDIATE POST INCLUDED 2ea #8 X 3/4″ PHILLIPS PANHEAD BNZ 410 SS SCREW INCLUDED (UPC 6164539837557)
  • 1 ea x INSTALL KIT- POST CAPS COMPONENT PART 1 EA 9/64″ Cobalt drill bit used to drill pilot hole for #8 PanTek (UPC 6164539876471)

Features & Benefits:

  • Reinforced aluminum system withstands the tension of cable infill without bending.
  • Powder-coat finish protects aluminum from the elements.
  • Clean, continuous top rail options for a finished look.
  • Deck or fascia mount posts support flexible installation.
  • Field assemblies have a low-profile look with no bulky turnbuckle.

Materials you’ll Need for this Railing System

  • 1 ea x 1/8″ CABLE – 1×19 Twisted Marine Grade 316L Stainless Steel 616320730147296 ft 0.49 145.04 FIELD SWAGED THREADED TENSIONING END FOR 1/8″ CABLE – Marine Grade 316 Stainless Steel Anti-Seize INCLUDED Anti-Seize reminder label M6 Sacrificial grinding nut ___ Qty Shipped (UPC 61632073204222)
  • 1 ea x BRONZE FASCIA MOUNTED DRILLED TERMINAL POST (13HOLES 49″ CUT TO HEIGHT) ASSEMBLY FOR 36″ OR 42″ RAIL HEIGHT 1ea BRONZE 49″ DRILLED TERMINAL POST INCLUDED 1ea BRONZE POST CAP (TERMINAL) INCLUDED 2ea #8 X 3/4″ PHILLIPS PANHEAD BNZ 410 SS SCREW INCLUDED (UPC 6163207298512)
  • 1 ea x BRONZE FASCIA MOUNTED DRILLED INTERMEDIATE POST 13HOLES (49″ CUT TO HEIGHT) ASSEMBLY FOR 36″ OR 42″ RAIL HEIGHT 1ea BRONZE 49″ DRILLED INTERMEDIATE POST INCLUDED 1ea BRONZE POST CAP (INTERMEDIATE) INCLUDED 2ea #8 X 3/4″ PHILLIPS PANHEAD BNZ 410 SS SCREW INCLUDED (UPC 6163207297527)
  • 1 ea x BRONZE POST-TO-POST RAIL ASSEMBLY 4FT LENGTH 4FT BRONZE POST-TO-POST RAIL INCLUDED 2ea MOUNTING BRACKET ASSEMBLY FOR POST-TO-POST 1ea MOUNTING BRACKET INCLUDED 2ea #8 X 3/4″ BRONZE PHILLIPS PANHEAD TEK 410 SS SCREW INCLUDED 2ea #10 x 3/4″ PHILLIPS PANHEAD TEK 410 SS SCREW INCLUDED (UPC 6163207339644)
  • 1 ea x BRONZE POST-TO-POST RAIL ASSEMBLY 5FT LENGTH 5FT BRONZE POST-TO-POST RAIL INCLUDED 2ea MOUNTING BRACKET ASSEMBLY FOR POST-TO-POST 1ea MOUNTING BRACKET INCLUDED 2ea #8 X 3/4″ BRONZE PHILLIPS PANHEAD TEK 410 SS SCREW INCLUDED 2ea #10 x 3/4″ PHILLIPS PANHEAD TEK 410 SS SCREW INCLUDED (UPC 6163207339883)
  • 1 ea x BRONZE POST CAP ASSEMBLY 1ea BRONZE POST CAP FOR TERMINAL POST INCLUDED 2ea #8 X 3/4″ PHILLIPS PANHEAD BNZ 410 SS SCREW INCLUDED (UPC 6164539837622)
  • 1 ea x BRONZE POST CAP ASSEMBLY 1ea BRONZE POST CAP FOR INTERMEDIATE POST INCLUDED 2ea #8 X 3/4″ PHILLIPS PANHEAD BNZ 410 SS SCREW INCLUDED (UPC 6164539837557)
