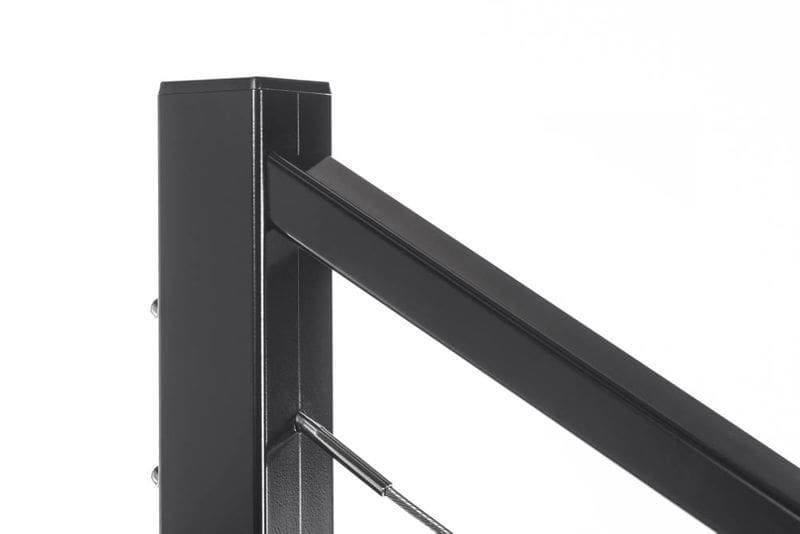

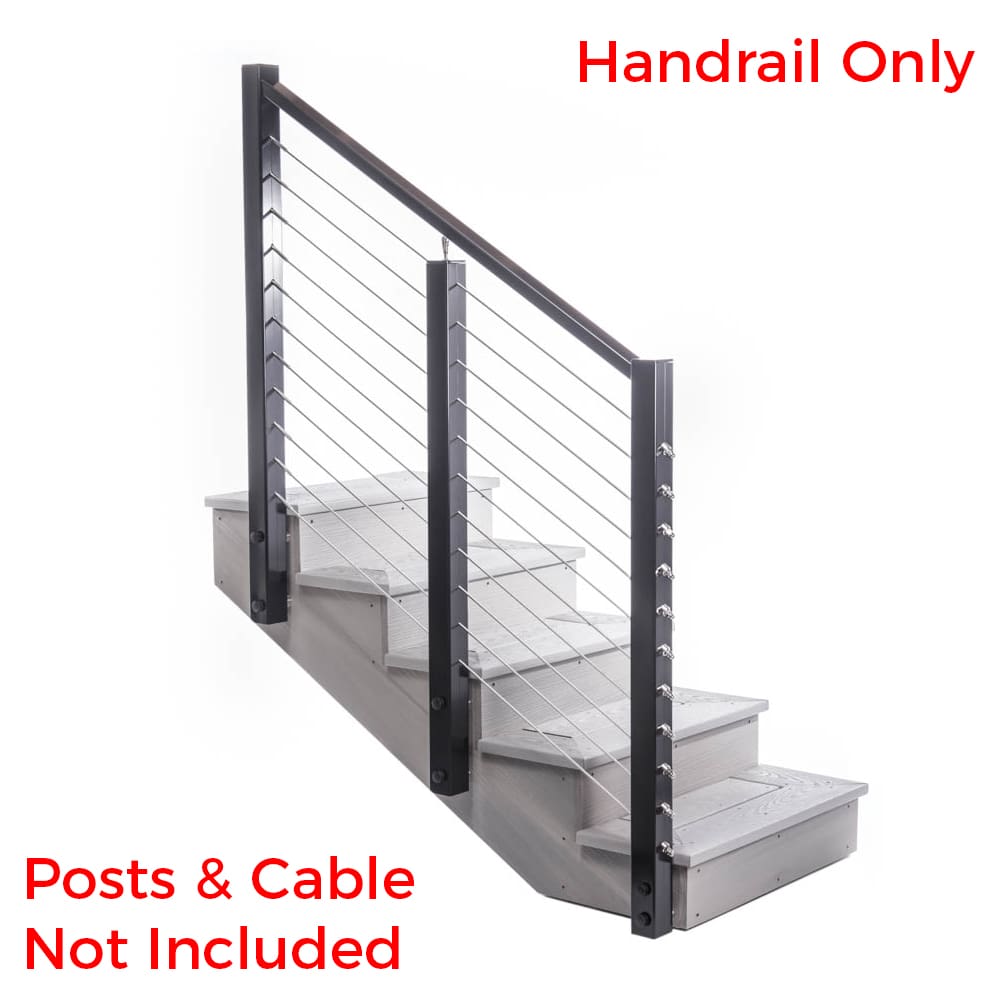

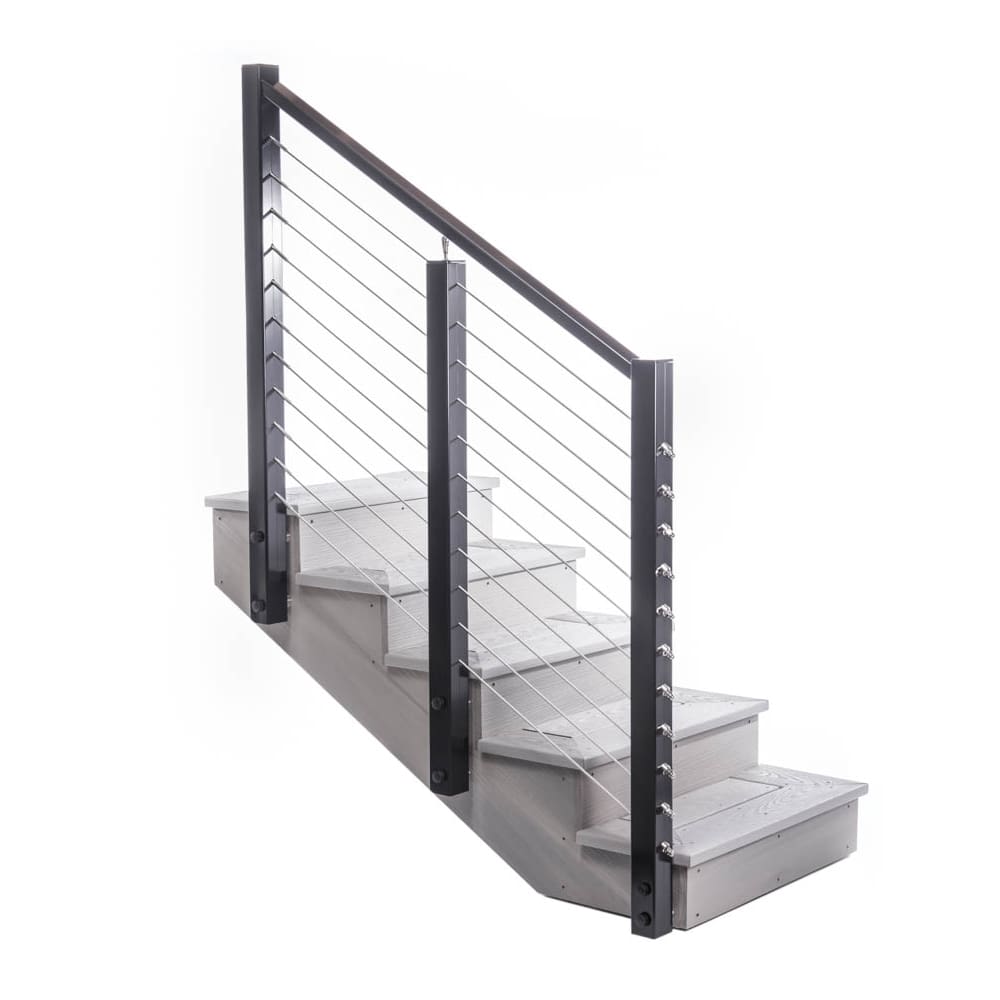

Stair Rail for Post-to-Post Deck Railing on an Angle
Base Price Starting at $35.28
INCLUDES:
- 1ea mounting bracket
- 2ea #8x3/4in Phillips screws
- 2ea #10x3/4in Phillips screws
Rail lengths over 9ft will have a truck freight charge added to the order after checkout.
Typically shipped with an entire railing system. Shipped in a cardboard tube via motor freight. CALL FOR A FREIGHT QUOTE 888-686-7245.
Description

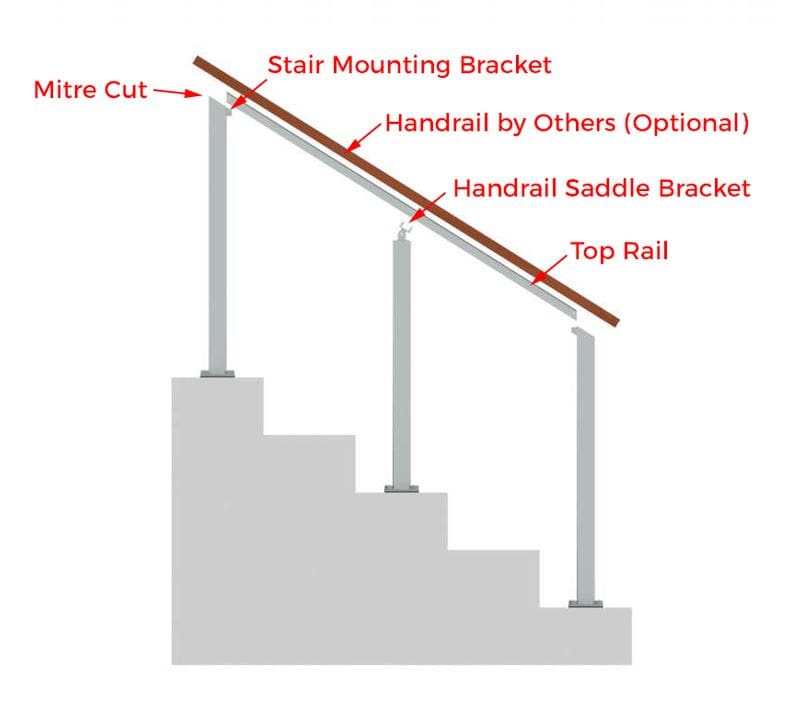

This inline handrail, or lock rail, can function as both a stand-alone handrail or support for a custom top rail through sloped sections of your run.
Benefits:
- Ideal shape and height for handrail use on stairs, ramps, and slopes.
- Meets ADA code for a graspable handrail.
- Matches the other pieces of our Aluminum Cable Railing for a seamless system.
- Aesthetically ties wood and aluminum together if used to support a wood top rail.
- Can also be oriented to accommodate bends and curves within a railing system.

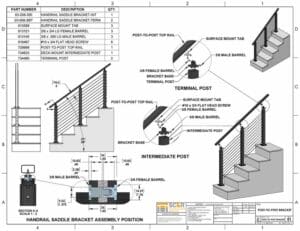

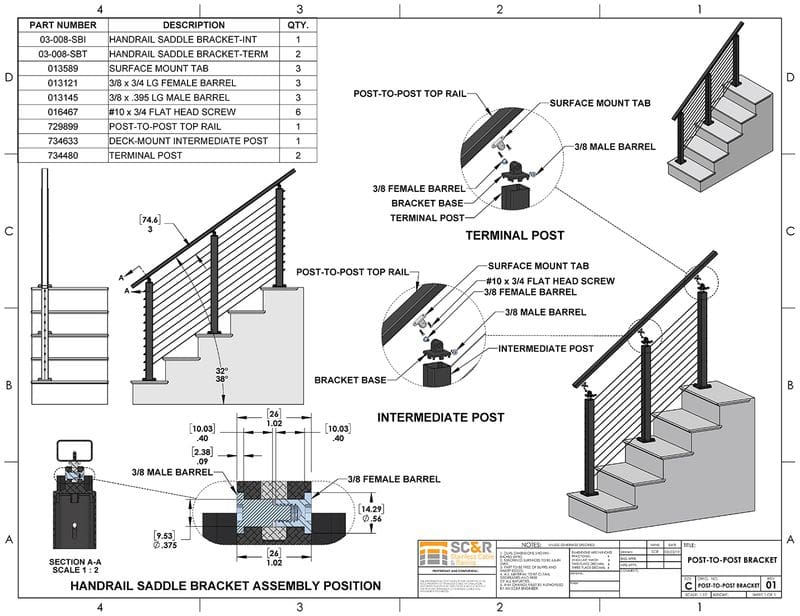

Available in a variety of lengths. Use multiple short pieces between posts or a single long piece supported by our Handrail Saddle Bracket Post Caps for a continuous handrail.
EACH STAIR RAIL ASSEMBLY INCLUDES:
- 1ea stick (choose length) Post-to-Post Aluminum Rail

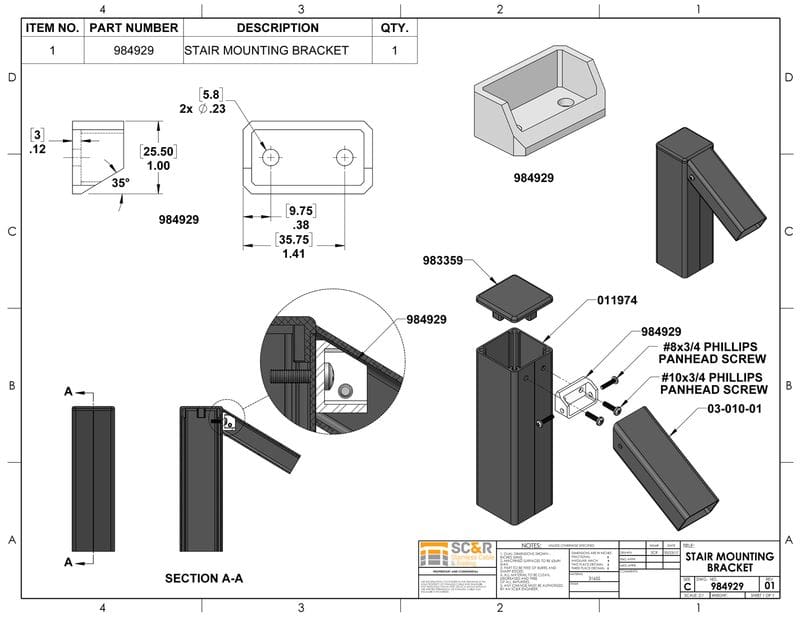

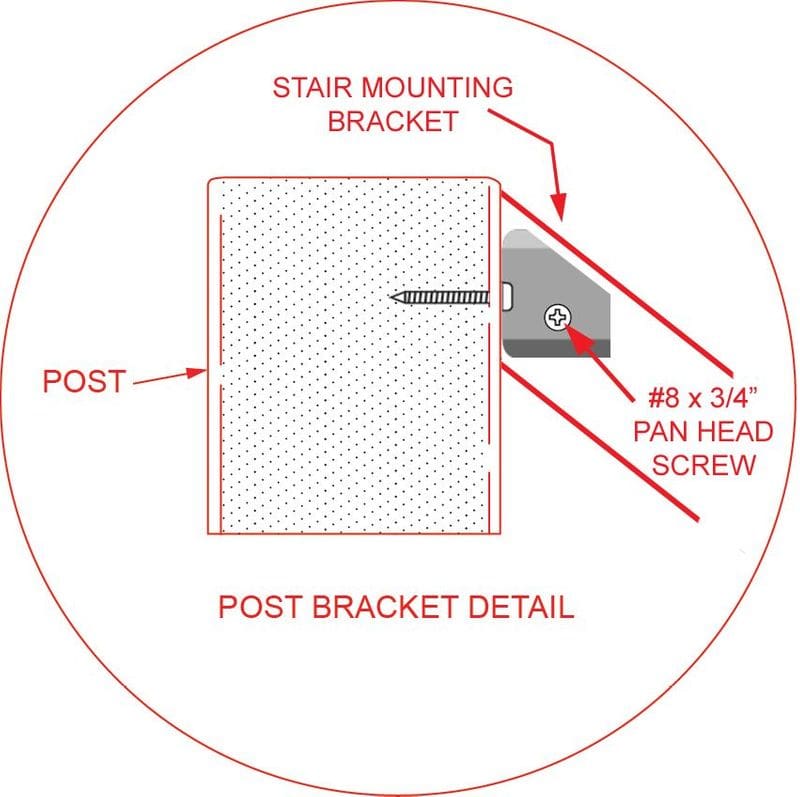

- 2ea Stair Mounting Bracket Assemblies:
- 1ea mounting bracket
- 2ea #8×3/4in Phillips panhead screws
- 2ea #10×3/4in Phillips panhead screws
Order additional mounting brackets and screws as needed.
ORDER WOOD TOP RAIL, SCREWS/WASHER, POSTS, CABLES, & FITTINGS SEPARATELY.
Product # 710432, 710951, 710456, 710975, 710470, 710999, 710494, 711019, 710357, 710876, 710371, 710890, 710395, 710913, 710418, 710937, 733810, 733858, 733896, 733919, 733957, 733995, 734015, 734053, 734091, 734114, 734152, 734190, 734206, 734244, 734282, 983267, 983274, 983281, 983304, 983311, 983335, 983663, 983687, 983694, 983717, 983724, 983748, 983977, 983991, 984011, 984318, 984325, 984332, 984349, 984356, 984707, 984714, 984721, 984745, 984752, 984769, 991330, 991347, 991378, 991385, 991392, 991408, 991453, 991460, 991477, 715758, 019000, 715765, 011929, 715772, 715796, & 715789
Additional information
| Weight | 5 lbs |
|---|---|
| Length | 2', 4', 6', 8', 10' (+ Freight Charge), 12' (+ Freight Charge), 14' (+ Freight Charge), 16' (+ Freight Charge), 18' (+ Freight Charge), 20' (+ Freight Charge) |
| Color | Black, Bronze, Clay, Natural, White, Anodized Black, Anodized Clear |
