FINELINE™ BALL ASSEMBLY FOR STAINLESS CABLE RAILING
Base Price Starting at $52.70
INCLUDES:
CABLE SOLD SEPARATELY. SWAGING TOOL REQUIRED.
Description

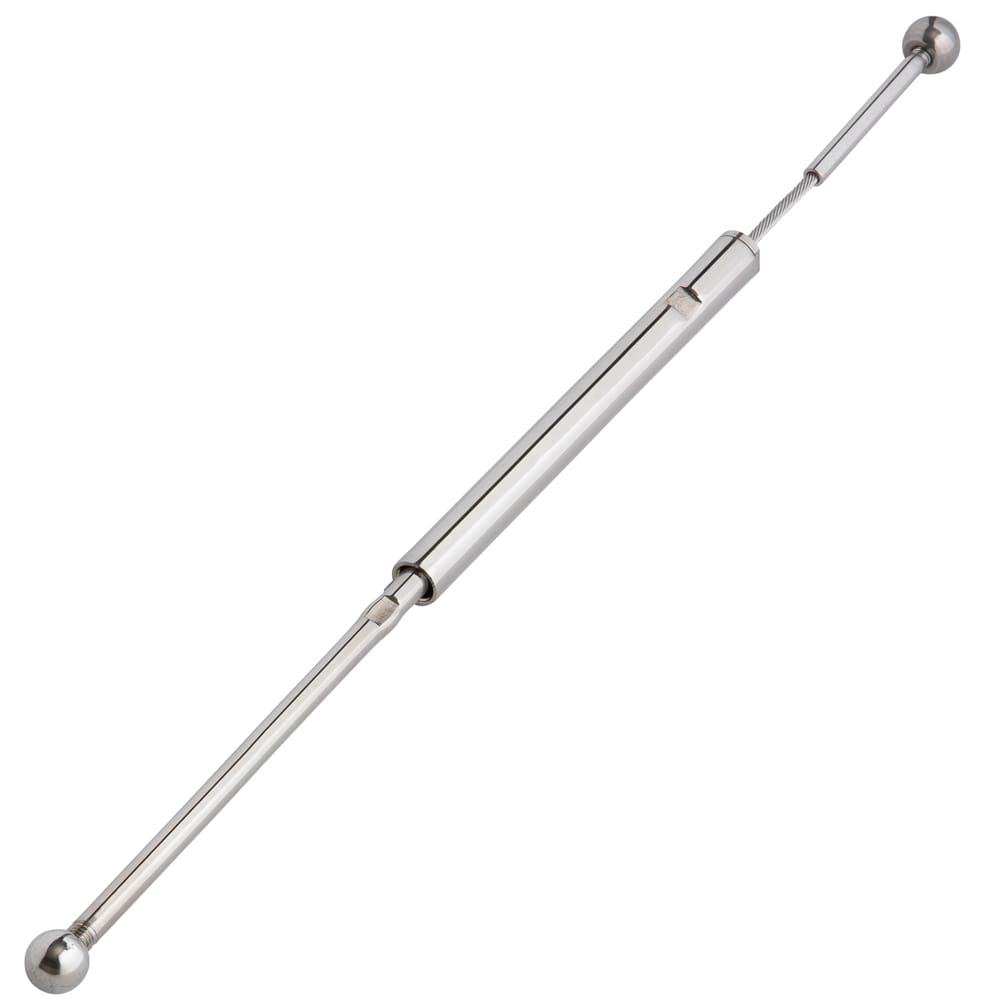

The FineLine™ BALL ASSEMBLY has no exposed threads and the swage is internal within the turnbuckle body. Works well for angled stair cable runs as well as straight runs with wood or metal posts. Choose either a FACTORY SWAGED TERMINAL END or a FIELD SWAGED TERMINAL END
-
- 11 assemblies needed for each cable run 36″ high.
- 13 assemblies needed for each cable run 42″ high.
- TIP: It’s more economical to have longer cable runs that run continuously around corners so fewer fittings are needed.
Parts and services (Can be Purchased Separately) needed to complete 1 assembly :
-
- Order: 1×19 STAINLESS CABLE for straight runs and runs with slight bends or Order: 7×7 STAINLESS CABLE for runs that have 90 degree corners.
- Order: 1 FineLine™ BALL TURNBUCKLE
- Note: For all Assembly lengths >50′ (70′ max) and/or runs from 0-70′ with more than 1 90 degree corner, it is recommended to omit the SWAGE BALL END and use 2 FineLine™ BALL TURNBUCKLES instead to allow cable tightening at both ends of your run.
- Order: PROFESSIONAL SWAGING SERVICE or CABLE CUTTER + CABLE CRIMPER tools to hand swage your wire rope assemblies.
Note: Stainless Steel is highly resistant, but not impervious to the elements, and requires minimal maintenance for ideal results. We recommend applying Passivator to all exposed stainless steel components at the time of installation. In addition, apply Rust Rescue if within 10 miles of a marine environment to further protect the stainless steel. Learn more about these products and general stainless steel care on our Cleaning & Maintenance Page.
Need help designing your railing project or an estimate? Email drawings(non-technical OK) to us at:
[email protected] and we will respond within 24 hours. See the WORKSHEETS tab for additional resources or just phone/fax us at 1-888-686-7245 (RAIL). We are happy to help!

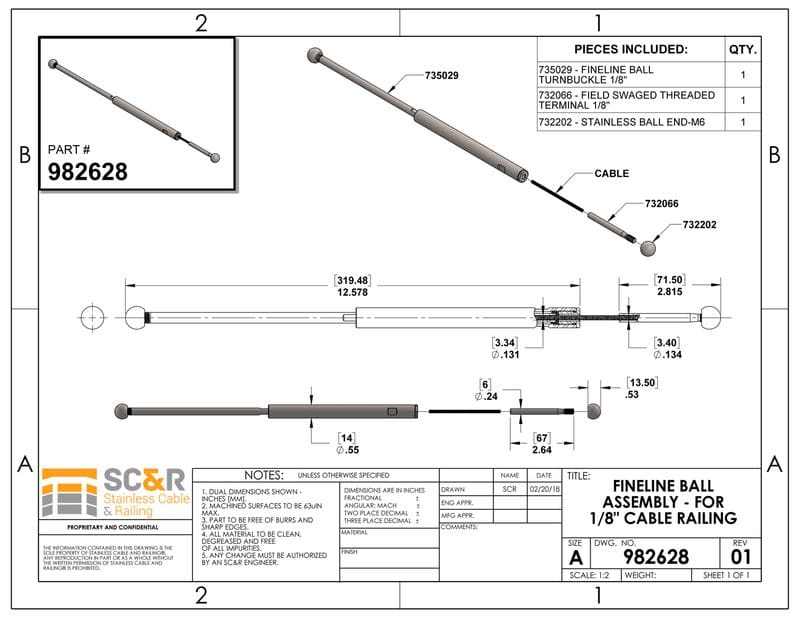

Product # 982628, 982635, 982642, & 982659
Additional information
| Weight | 0.75 lbs |
|---|---|
| Ball Terminal End | 1/8in Field Swaged Terminal End, 1/8in Factory Swaged Terminal End, 3/16in Field Swaged Terminal End, 3/16in Factory Swaged Terminal End |
