CableQuick® Lock Swageless Receiver 1 – For Wood Posts & 1/8″ Cable

Base Price $17.55 AvailabilityView our shipping policy

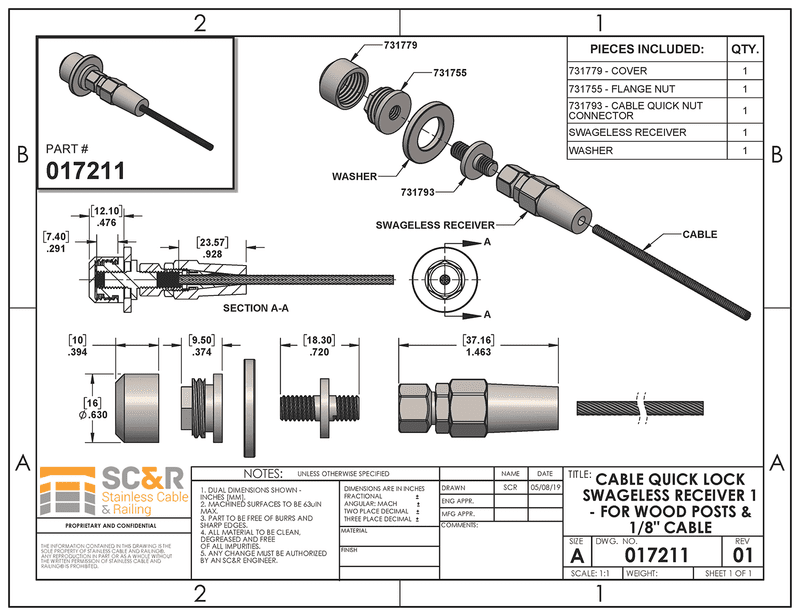

INCLUDES:

  • 1ea CABLE QUICK LOCK SWAGELESS RECEIVER
  • 1ea CABLE QUICK CONNECTOR
  • 1ea CABLE QUICK NUT
  • 1ea CABLE QUICK NUT COVER
  • 1ea WASHER

    • CABLE SOLD SEPARATELY.

    FOR 1/8in CABLE ONLY

    SKU: 017211 Categories: ,

    Description

    This CableQuick® LOCK SWAGELESS RECEIVER – WOOD – 1 is part of our CableQuick® Lock Assembly Type 1. Combine with any assembly for a swageless hold in WOOD POSTS.

    Recommended Quantity:

      • 11 terminals needed for each cable run 36″ high.
      • 13 terminals needed for each cable run 42″ high.

    TIP: It’s more economical to have longer cable runs that run continuously around corners so fewer fittings are needed.

    NOTE: THIS ASSEMBLY TYPE IS ONLY AVAILABLE FOR 1/8″ CABLE. MAKE SURE YOU SELECT THIS SIZE WHEN ADDING CABLE INFILL TO YOUR CART!

    Though you won’t need to swage your assemblies through using this terminal, you’ll still need to cut your cables. Make sure you add CABLE CUTTERS to your cart.

    Note: Stainless Steel is highly resistant, but not impervious to the elements, and requires minimal maintenance for ideal results. We recommend applying Passivator to all exposed stainless steel components at the time of installation. In addition, apply Rust Rescue if within 10 miles of a marine environment to further protect the stainless steel. Learn more about these products and general stainless steel care on our Cleaning & Maintenance Page.

    For help, contact us any time. You can call 1-888-686-7245 (RAIL) or email [email protected].

    Product # 017211

    Additional information

    Weight 0.09 lbs
