Hole Drilling Guidelines For CableView™ Cable Railing Systems

During the installation of your CableView™ deck railing system, you may find you need to drill holes in your posts to accommodate the cables and fittings. These charts are designed to help assure that you are drilling the smallest hole necessary for our different types of infill.

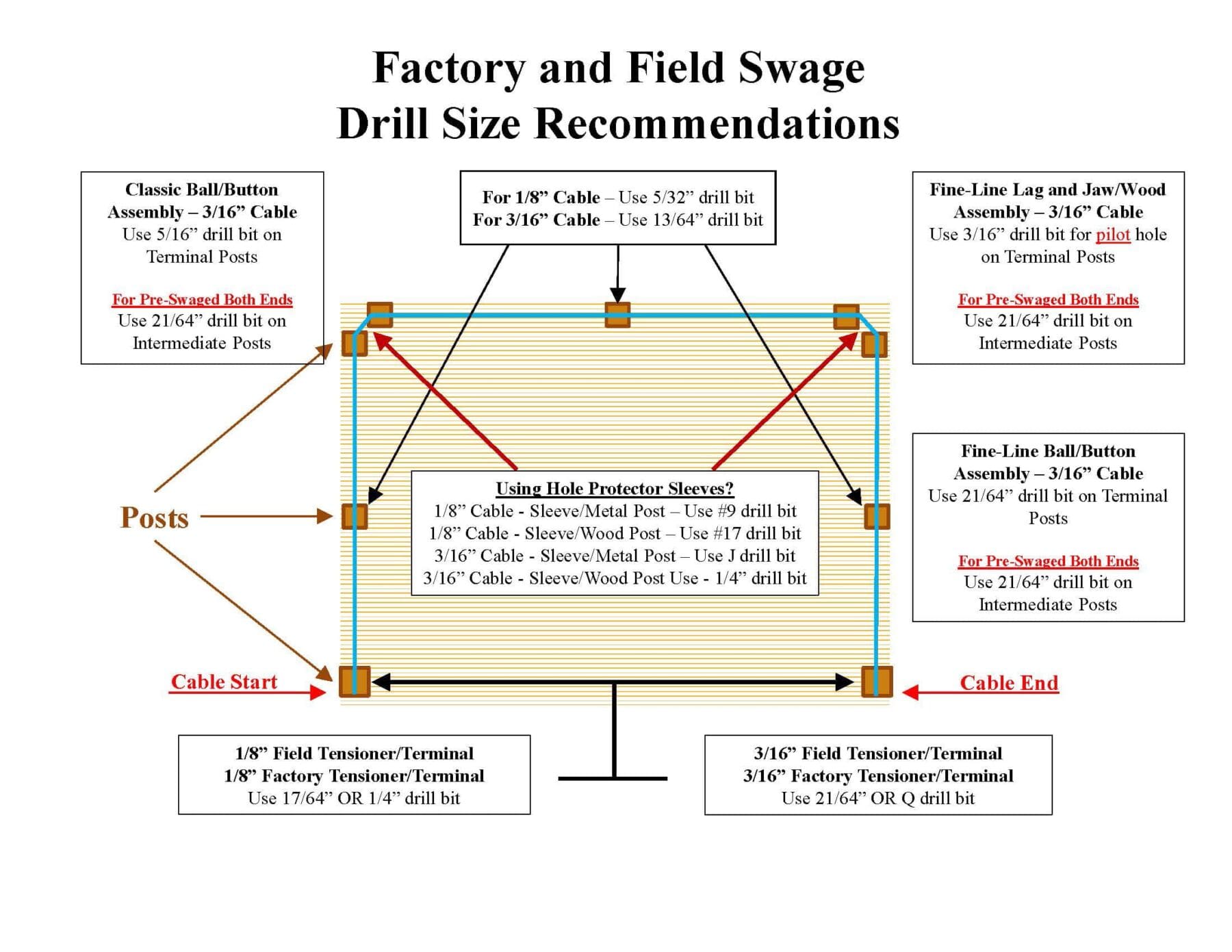

Find the type of fitting you're using and the type of post (terminal or intermediate) in the chart below to identify the recommended hole size.

FieldAssemblyDrillSizeRecommendations-New-min

QuickLock-LowProfile-Drill-Size-Recommendations-4-min
