Pre-Drilled Round Intermediate Stainless Steel Fascia (Side) Mount 36in Post

Round stainless steel cable railing post with cable infill

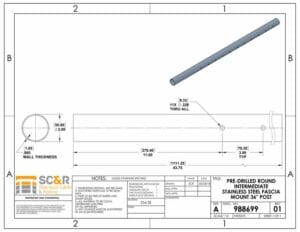

Stainless steel round tube used for cable railing postsStainless steel round cable railing post drawing and specifications

Item #SSR-FM-36-DPost
Base Price$186.95
Hole Size
NOTES:Fascia Bracket NOT INCLUDED
Don't forget Mounting Brackets and Screws.

Drilled posts are for flat runs. For stair runs, buy undrilled or call us for angled hole drilling.

THIS ITEM REQUIRES FABRICATION BEFORE SHIPPING. HOW LONG THIS PROCESS TAKES WILL VARY. PLEASE CONTACT US FOR THE MOST ACCURATE ESTIMATE.
Availability
Quantity
Our line of Round Marine Grade Stainless Steel Posts offers not only a shape alternative to our square posts, but also boasts the naturally sturdier structure of a cylindrical design. Use as intermediate posts in your cable railing run.

The drilled posts sold on this page are for flat runs. For stair runs, buy undrilled or call us for angled hole drilling.

Details:
  • Brushed Finish 316 Marine Grade Stainless Steel Intermediate Post
  • Dimensions: 2in OD with 1.6mm wall thickness. For Cable Railing Systems at 36in Rail Height
  • Pre-Drilled for Fascia (Side) Mounting on Level Surfaces
  • Drilled Hole Specifications
      Qty: 11 drilled holes
      Size: 21/64in thru
      Spacing: 3in apart, with first hole 11in from bottom of post
See Diagram above for possible Drilling configuration.

If PROFESSIONAL SWAGING SERVICE is used at both ends of the cable run: Use DECK OR FASCIA MOUNT TERMINAL POSTS for every post in your rail, including double offset posts at the corners. This will allow the attached fitting to pass through every post in the system.

If HAND SWAGING your assemblies (RECOMMENDED): Minimum of 2 DECK OR FASCIA MOUNT TERMINAL POSTS are required for each cable run (wherever your cable begins and ends). If your cable run also has 90 degree corners, use double INTERMEDIATE POSTS at each corner. Use DECK OR FASCIA MOUNT INTERMEDIATE POSTS spaced evenly (4' Max) for the remainder of the posts. CABLE CRIMPERS and CABLE CUTTERS are required.

Note: Stainless Steel is highly resistant, but not impervious to the elements, and requires minimal maintenance for ideal results. We recommend applying Passivator to all exposed stainless steel components at the time of installation. In addition, apply Rust Rescue if within 10 miles of a marine environment to further protect the stainless steel. Learn more about these products and general stainless steel care on our Cleaning & Maintenance Page.

For design assistance, call us any time at 1-888-686-7245 (RAIL) or email quotes@stainlesscablerailing.com. Fax us a sketch or fill out the ESTIMATE REQUEST FORM for a free estimate. You might also want to check out our cable railing videos and WORKSHEETS.

Product # 988699, 714317, & 714324
